EYE-LED Miniature Bookcase Spotlights

Hera Lighting section index

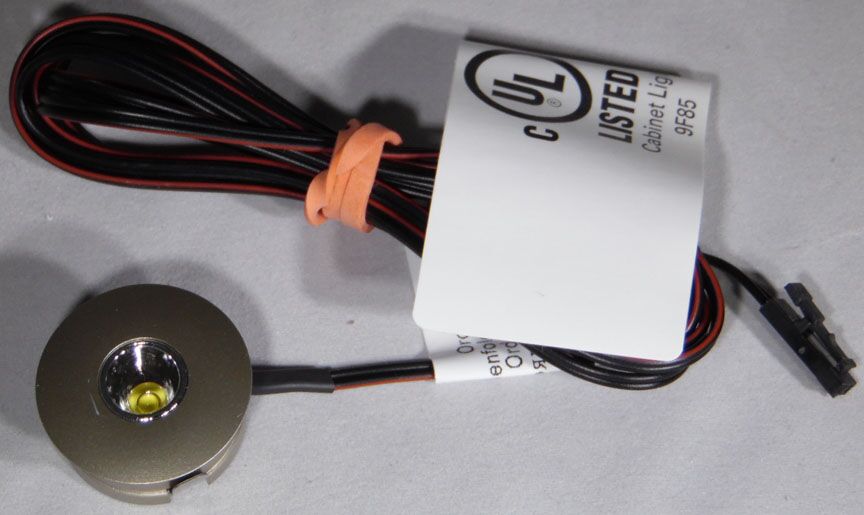

Miniature LED Recessed Spotlight

The EYE-LED spotlight is about the size of your eye. Designed to fit into a 1" diameter hole, this is the light of choice for bookcases and wood shelving to throw a tiny amount of light in one specific area per light. When you do not have room for a 2-1/2" to 3" dia. LED light, the EYE-LED is the solution.

Product Features:

  • Energy efficient at 1 watt per light
  • Extremely small dimensions, just 1/2" recess depth, and 1" dia. hole
  • Available in 3000K warm white and 5000K cool white
  • Stainless Steel or Brushed Aluminum finish
  • Efficacy: 69-105 lm/W
  • CRI >90 for warm white, and CRI >80 for cool white
  • Attached 51" connecting lead with plug and play jack, extension cables available
  • Approved for use in closet applications
  • For use with 350 mA constant current driver (up to 9 can work from PSLED/10 with 3 terminal block extenders)
  • Dimmable if you desire, but again, only one watt per light, they are already dim lights
HER-EYELED__/__
Manufacturer: Hera Lighting
Hera HER-EYELEDSS/WW Minature Eye-LED light, stainless steel, warm white - requires PSLED/10, 51" connecting lead
Also:
HER-EYELEDSS/CW cool white stainless steel finish
HER-EYELEDA/WW warm white aluminum finish
HER-EYELEDA/CW cool white aluminum finish
$81.32
Add
HER-PSLED/10
Hera LED Power Drivers and Dimmers
Hera PSLED/10 power supply for 24V LED lights, 350 mA constant current with 79'' cord length, 10 watt (but can support up to 10.8 watts)
$52.71
Add
HER-PSLED/DIM/S
Hera LED Power Drivers and Dimmers
Hera PSLED/DIM/S dimmable power supply for LED lights, 350 mA constant current with 79'' cable, 18 watt (dual 9 watt leads) - requires DIMCONTROL to be dimmable, works at full output without controller
$101.37
Add
HER-TBLED/B
Hera LED Power Drivers and Dimmers
Hera TBLED/B terminal block for PSLED power supplies, 3 port with 2 jumpers, to add more lower wattage lights to same driver
$14.09
Add
HER-LEDCC36
Hera LED Power Drivers and Dimmers
Hera LEDCC36 LED connecting cable, 36'' long - for use with PSLED drivers to extend distance of lights from driver
$10.19
Add
HER-LEDCC72
Hera LED Power Drivers and Dimmers
Hera LEDCC72 LED connecting cable, 72'' long - for use with PSLED drivers to extend distance of lights from driver
$11.73
Add
Ordering Note:
The PSLED/10 driver can actually support up to 9 of the EYE-LED lights when using 3 of the TBLED/B terminal block extenders. The way that works is, one TBLED/B uses one port on the PSLED/10 and converts it to 3 useable ports. So adding one TBLED/B gives you the opportunity to connect 5 lights. Adding two will give you 7 ports to use. And adding a 3rd gives you 9 ports. Lights are 1 watt each, that is a 9 watt load on the 10 watt driver.

If choosing to use the PSLED/DIM/S driver, up to 6 lights can connect to it without the aid of any terminal block extenders. If you use up to 6 of the TBLED/B with that driver, then 18 EYE-LED lights can operate from that driver.

For the DIMCONTROL dimming controller to use with the PSLED/DIM/S, please see our LED Power Drivers and Dimmers web page. Extension cables are for greater reach away from the position of the driver. Each light already has a 51" attached lead wire.

The Brushed Aluminum finish is very similar to matte chrome. It is a near pure silver finish with a little sparkle to it. The stainless steel finish has that extremely faint golden hue within it.

For an eye style LED light in multiple finish options, as well as round and square shapes, please see our Loox5 2090-3090 LED light page.
Hera EYE-LED specifications diagram and mounting placement
The EYE-LED requires a 1" diameter hole and at least 1/2" deep for it to recess into. Be precise, the friction fit clips do not extend very far out from the light. You want your hole to be precisely 1". The EYE-LED is also a very cool running LED and can be placed reasonably closer together. It has many uses, but has proven itself as a very nice bookcase or shelf light. They can be use for accent lighting in your bedrooms and walkways also.
