SR45-LED Small Swivel Spotlight

Hera Lighting section index

Small Recessed High Output Swivel Spotlight

The SR45-LED spotlight is ultra compact. Designed to fit in the same hole as the old halogen EH24 light, and the old LED version EH24-LED. It features a 20 degree tilt forward or backward for pinpointing light in display applications. A great light with a small footprint, but large light output.

Product Features:

  • Energy efficient at 5 watts
  • Available in 3000K warm white and 4000K cool white
  • Stainless Steel or a White finish option (White limited to 3000K)
  • Estimated 50,000 hours of usable life (6 years if on 24/7, but consider, if on 8 hours a day 5 days a week, that is approx. 24 years)
  • Efficacy: 73 lm/W, CRI >90
  • 20 degree tilt to either side
  • Attached 79" connecting lead with plug and play jack
  • Approved for use in closet applications
  • Recess depth 1-1/16"
  • For use with PS24V constant voltage drivers (30 watt, 75 watt, or 96 watt)
  • Dimmable with optional accessories
HER-SR45/SS/3000/CV
Manufacturer: Hera Lighting
Hera HER-SR45/SS/3000/CV swivel/tilt recessed spotlight, warm white, 5 watt, attached 79" lead wire, stainless steel finish (direct replacement for EH2420 and EH24-LED), NOW constant voltage. These work from the PS24V LED power drivers. (Old version without /CV in part number used different drivers)
$119.96
Add
HER-SR45/SS/4000/CV
Manufacturer: Hera Lighting
Hera HER-SR45/SS/4000/CV swivel/tilt recessed spotlight, cool white, 5 watt, attached 79" lead wire, stainless steel finish (direct replacement for EH2420 and EH24-LED), NOW constant voltage. These work from the PS24V LED power drivers. (Old version without /CV in part number used different drivers)
$119.96
Add
HER-SR45/WH/3000/CV
Manufacturer: Hera Lighting
Hera HER-SR45/WH/3000/CV swivel/tilt recessed spotlight, warm white, 5 watt, attached 79" lead wire, white finish (direct replacement for EH2420 and EH24-LED), NOW constant voltage. These work from the PS24V LED power drivers. (Old version without /CV in part number used different drivers)
$119.96
Add
HER-PS24V/30/Y
Hera LED Power Drivers and Dimmers
Hera PS24V/30/Y LED power driver for LED lights, 24 V DC, 30 Watt, 12 port terminal block (can be used with several of Hera's 24 volt LED light systems), can become dimmable with STICKPSDIM and controller (The old /S is now updated to /Y.)
$76.03
Add

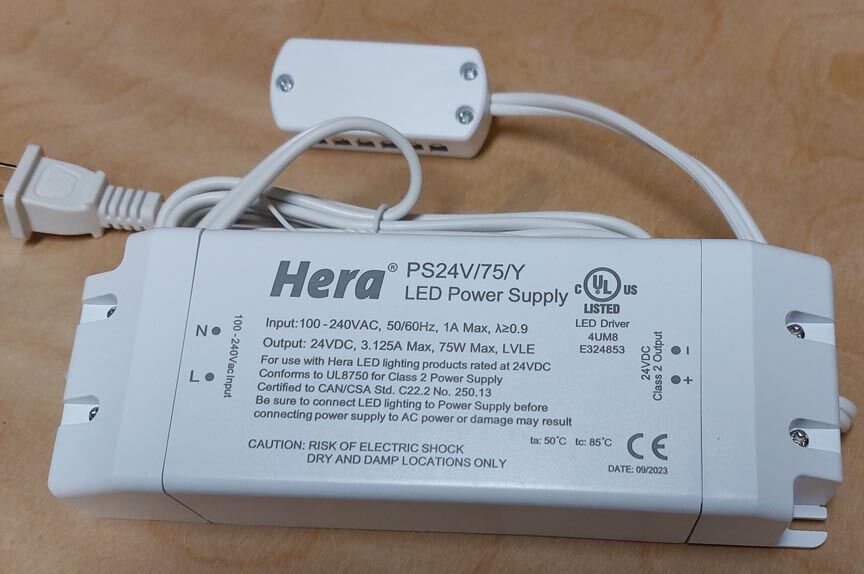

HER-PS24V/75/Y
Hera LED Power Drivers and Dimmers
Hera PS24V/75/Y LED power driver for 24 Volt LED lights, linear and spotlights, attached 12 port terminal block, can become dimmable with STICKPSDIM and controller. (The old /S is now updated to /Y.)
$148.27
Add
Ordering Note:
The PS24V/30/Y LED driver can support up to 5 lights. For extended life of LED power drivers, it is best no to load them with their maximum wattage, so 5 lights are better than 6 on the 30 watt driver. The PS24V/75/S driver could support up to 14 lights. It has a 12 port terminal block, terminal block extenders are available if needed.

For the STICKPSDIM dimming modul and DIMCONTROL dimming controller or extension cables for this light, please see our LED Power Drivers and Dimmers web page.

On the extended pictures shown when clicking on the stainless steel color light above, you will see two black-tipped spring load clamps. These are NOT visible when the light is mounted. They actually fit into the recessed hole and hold the light into the hole. The diagrams below explain that a little more and show the dimensions on the light also. Additionally, spacing requirements for heat dissipation.

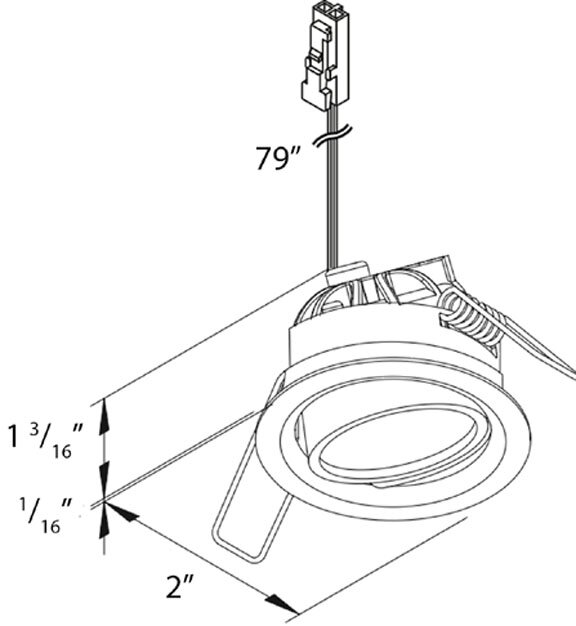

Hera SR45-LED recessed spotlight specifications

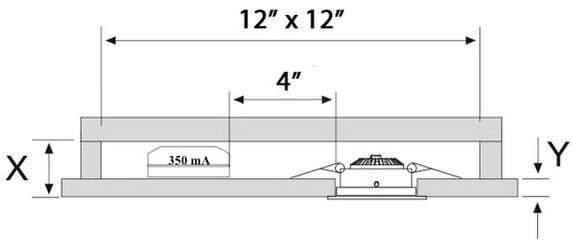

Hera SR45-LED light placement specifications
For the X and Y measurements in the second diagram above,
Y is the panel thickness, and X is the minimum depth needed to mount the light.
Panel thickness (Y) up to 5/8", mounting depth (X) needed 1-1/4".
Y from 11/16" to 3/4", X = 1-3/8"
Y from 13/16" to 7/8", X = 1-5/8"
and Y from 15/16 to 1-3/16", X = 1-13/16".

Minimum distance between a light and a power driver should be 4" or greater. Reason being that the driver has burnout protection. Heat from the light could trick it into turning off if it senses it is too hot. Best to space the driver even a bit further than 4" away. Lights do have a 79" attached lead wire.
